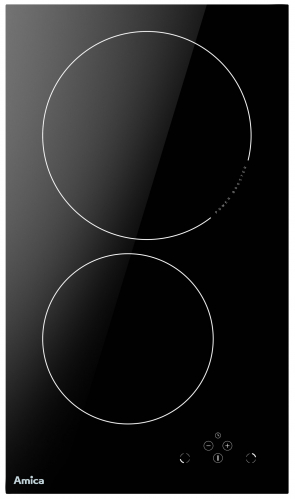

PI3510U
PI3510U
Specification
FEATURES
| Bridge Function No data in PDM for HQF | Bridge bay size (mm) No bridge box | ChildLock Yes | |||||||||||
| Energy saving Yes | Heat maintainer Yes | Hob finish No bevelled | |||||||||||
| Front left heating zone dimension (cm) Nie dotyczy | Front left heating zone power rating (kW) Nie dotyczy | Left Front Induction Zone Booster No data in PDM for HQF | |||||||||||
| Rear left heating zone dimension (cm) Nie dotyczy | Rear left heating zone power rating (kW) Nie dotyczy | Left rear induction zone booster No data in PDM for HQF | |||||||||||
| Front middle zone energy consumption F 188.9 Wh/kg | Front middle zone type Induction | Rear middle zone energy consumption R 188.9 Wh/kg | |||||||||||
| Rear middle zone type Induction | Minute minder Yes | Mounting data No data in PDM for HQF | Number of Booster 1 | Number of power levels 9 | Overflow detection Yes | ||||||||
| Overheat detection Yes | Residual heat indicator Yes | Front right heating zone dimension (cm) Nie dotyczy | Right front induction zone booster No data in PDM for HQF | Rear right heating zone dimension (cm) Nie dotyczy | Right Rear Induction Zone Booster No data in PDM for HQF | ø 16 cm 1 | ø 20 cm with Power Booster 1 | Small object detection Yes | Temperature limiter Yes | Auto switch off Yes | Timer Yes | Hob energy consumption 188.9 Wh/kg | Control type +/- |
Equipment
| Power indicator lamp Yes |
Technical data
| Frequency 50 | Can be built flush with the top Yes | Connection cable colour White | |
| Connection type 1N~230 V | Cut out size - depth 49 cm | Cut out size - width 28.5 cm | |
| Display color Red | Edge finish C-cut | Gross volume 0.0313 m³ | |
| Total power of hob 3.7 kW | In-furniture depth 6.8 cm | Middle induction zone Booster No data in PDM for HQF | |
| Rear middle zone size (cm) 20 | Net depth 52.2 cm | Net height 7.2 cm | |
| Net weight 5.6 kg | Net width 30 cm | Number of heating elements 2 | |
| Type of plug or cable Euro 3x0.75mm2 | Position Of Connection Cable Right - rear | Connection cable Power cord with plug | |
| Power cabel length 130 cm | Power Supply Voltage 230V | Power Supply Voltage 230V | Hob type Induction |
