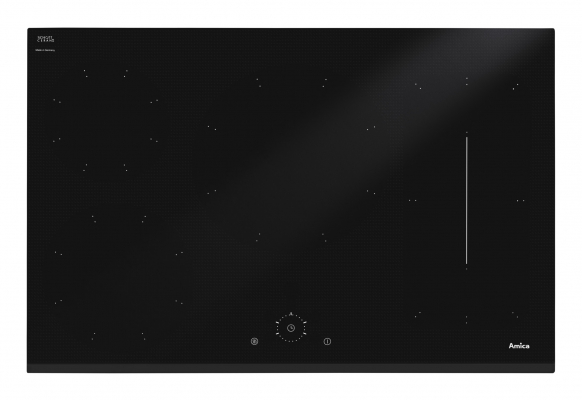

PI 7551 RSTK

Bridge
Energy-saving
PowerBooster

Specification

FEATURES

Rapid preheating Yes

Bridge bay size (mm) No Data

ChildLock Yes

Energy saving Yes

Heat maintainer Yes

Hob finish Front bevelled

Front left heating zone dimension (cm) 20

Left front zone energy consumption FL 188.9 Wh/kg

Front left heating zone power rating (kW) 2.3/3

Left front zone type FL Induction

Rear left heating zone dimension (cm) 16

Left rear zone energy consumption RL 188.9 Wh/kg

Rear left heating zone power rating (kW) 1.2/1.4

Left rear zone type RL Induction

Middle zone energy consumption MID 188.9 Wh/kg

Middle heating zone power rating (kW) 2.3/3

Middle zone type MID Induction

Minute minder Yes

Number of Booster 5

Bridge zones 1

Number of power levels 9

Overflow detection Yes

Overheat detection Yes

Pause function Yes

Residual heat indicator Yes

Front right heating zone dimension (cm) 16

Right front zone energy consumption FR 188.9 Wh/kg

Front right heating zone power rating (kW) 1.4/2

Right front zone type FR Induction

Rear right heating zone dimension (cm) 16

Right rear zone energy consumption RR 188.9 Wh/kg

Rear right heating zone power rating (kW) 1.2/1.4

Right rear zone type RR Induction

Round slider control Yes

ø 16 cm with Power Booster 1

ø 22 cm with Power Booster 1

ø 26 cm Power Booster 1

Small object detection Yes

Temperature limiter Yes

Auto switch off Yes

Timer Yes

Hob energy consumption 188.9 Wh/kg

Control type Round slider

Equipment

Power indicator lamp Yes

Technical data

Connection type 3N~230/400 V	Display color Red	Edge finish Bevelled
Gross volume 0.0668 m³	Total power of hob 10.1 kW	Net depth 51.8 cm
Net weight 15 kg	Net width 77 cm	Number of heating elements 5
Position Of Connection Cable Middle - rear	Power Supply Voltage 230_400V	Hob type Induction
