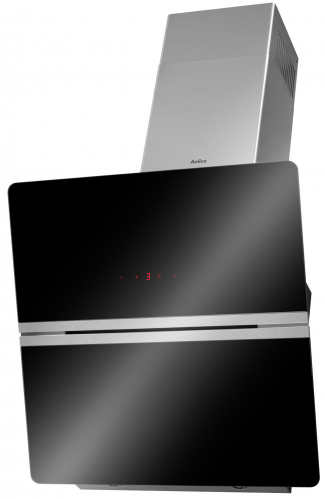

OKC657S
OKC657S
Specification
FEATURES
| Accessories - | Air flaps Yes | Charcoal filter change indicator Yes |
| Delay Yes | FrameOn Yes | Filter saturation indicator Yes |
| High efficiency Yes | Maximum time of delay 90 ' | Panel - language version Pictograms |
| Protection class of electric shock I_Class | Low noise level Yes | Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 1 | Number of grease filters 1 | Number of layers in grease filter 3 |
| Number of speed 4 | PowerBooster Yes | Type of control Sensor |
| Type of display LED | Type of grease filters Aluminium frame | Carbon filter type FWK 280 |
Technical data
| Air flow at 1 speed - extractor by EN 61591 281 m3/h | Air flow at 2 speed - extractor by EN 61591 342 m3/h | Air flow at 3 speed - extractor by EN 61591 442 m3/h | ||||||||||||||||||||||||||||||||||||
| Air flow at 4 speed - extractor by EN 61591 703 m3/h | Air Flow at Intensive or Boost Setting [If Available] 703 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 442 m3/h | ||||||||||||||||||||||||||||||||||||
| Air Flow at Minimum Speed in Normal Use 281 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 429 m3/h | Air Pressure at Best Efficiency Point P BEP 392 Pa | ||||||||||||||||||||||||||||||||||||
| Annual energy consumption 58.9 kWh | Annual energy consumption 58.9 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 729 lux | ||||||||||||||||||||||||||||||||||||
| Control panel on one side/two sides One side | Dimensions of grease filter 250 x 300 x 9 mm | Display color Red | ||||||||||||||||||||||||||||||||||||
| Distance from light cover to wall 2 cm | Distance to electric hob 45 cm | Distance to gas hob 65 cm | ||||||||||||||||||||||||||||||||||||
| Electric Power Input at Best Efficiency Point - W BEP 159 W | Energy Efficiency Index - EEI hood 55.6 | Fluid Dynamic Efficiency - FDE hood 29.4 | ||||||||||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency Class A | Grease Filtering Efficiency - GFE hood 58.1 % | Grease Filtering Efficiency Class E | Gross volume 0.2499 m³ | Intensive or Boost Setting Auto-Off time 8 ' | Internal/external motor Internal | Lighting Efficiency - LE hood 121.5 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Limitation of Exhaust Air - t limit 9 ' | Maximum Possible Air Flow 727 m3/h | Motor unit rated power 260 W | Motor type/model S-45 004 01 | Net depth 42.5 cm | Net height max 121 cm | Net height min 105 cm | Net weight 19.76 kg | Net width 60 cm | Noise level at 1 speed - extractor by EN 60704-2-13 49 dB | Noise level at 2 speed - extractor by EN 60704-2-13 53 dB | Noise level at 3 speed - extractor by EN 60704-2-13 58 dB | Noise level at 4 speed - extractor by EN 60704-2-13 67 dB | Nominal Power of the Lighting System - W L 6 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 15 cm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.25 W | Power cabel length 170 cm | Power rating 266 W | Power Supply Voltage 230V | Power unit of main lighting 3 W | Noise level on TURBO mode 67 dB | Sound Power Emission at Intensive or Boost Setting [if available] 67 dB | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 58 dB | Sound Power Emission at Minimum Speed Available in Normal Use 49 dB | Noise level 58 dB | Time Increase Factor - f 0.9 | Type of main lighting LED |
