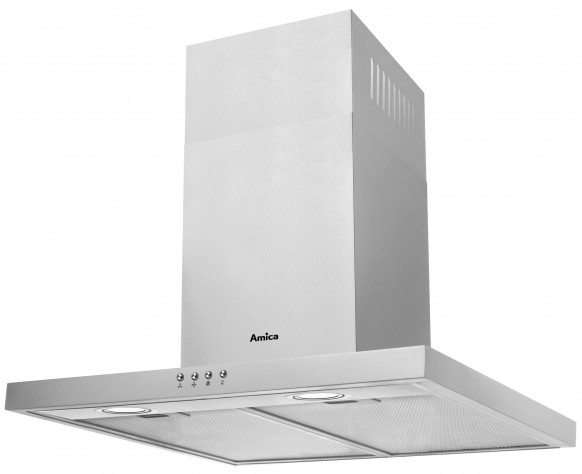

OKP6321T
OKP6321T
Specification
FEATURES
| Accessories Pipe | Air flaps Yes | Montage template Yes |
| Panel - language version Pictograms | Pipe Yes | Protection class of electric shock I_Class |
| Low noise level No | Type of work Extraction/Recirculation |
Equipment
| Illuminated push buttons Yes | Number of carbon filters 1 | Number of grease filters 2 |
| Number of layers in grease filter 5 | Number of speed 3 | Type of control Soft touch |
| Type of grease filters Aluminium frame | Carbon filter type KF 17192 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 351 m3/h | Air flow at 2 speed - extractor by EN 61591 400 m3/h | ||||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 455 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 455 m3/h | Air Flow at Minimum Speed in Normal Use 351 m3/h | ||||||||||||||||||||||||||||||||
| Air Flow Rate at Best Efficiency Point - Q BEP 251.1 m3/h | Air Pressure at Best Efficiency Point P BEP 263 Pa | Annual energy consumption 64.1 kWh | ||||||||||||||||||||||||||||||||
| Annual energy consumption 64.1 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 144 lux | Container qty 40'HQ 490 | ||||||||||||||||||||||||||||||||
| Control panel on one side/two sides One side | Dimensions of grease filter 340 x 260.2 mm | Display color Red | ||||||||||||||||||||||||||||||||
| Distance from light cover to wall 38.5 cm | Distance to electric hob 45 cm | Distance to gas hob 65 cm | ||||||||||||||||||||||||||||||||
| Electric Power Input at Best Efficiency Point - W BEP 119.8 W | Energy Efficiency Index - EEI hood 76.9 | Fluid Dynamic Efficiency - FDE hood 15.3 | ||||||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency Class D | Grease Filtering Efficiency - GFE hood 75 % | Grease Filtering Efficiency Class C | Gross volume 0.1395 m³ | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 48 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 455 m3/h | Motor unit rated power 150 W | Motor type/model C series | Net depth 50 cm | Net height max 91.5 cm | Net height min 53.5 cm | Net weight 10.9 kg | Net width 60 cm | Noise level at 1 speed - extractor by EN 60704-2-13 59 dB | Noise level at 2 speed - extractor by EN 60704-2-13 61 dB | Noise level at 3 speed - extractor by EN 60704-2-13 63 dB | Nominal Power of the Lighting System - W L 3 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 15 cm | Type of plug or cable Euro plug | Power Consumption in Off Mode - Po 0.34 W | Power cabel length 120 cm | Power rating 153 W | Power Supply Voltage 230V | Power unit of main lighting 1.5 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB | Sound Power Emission at Minimum Speed Available in Normal Use 59 dB | Noise level 63 dB | Time Increase Factor - f 1.4 | Type of main lighting LED - other |
